Safety laser scanner

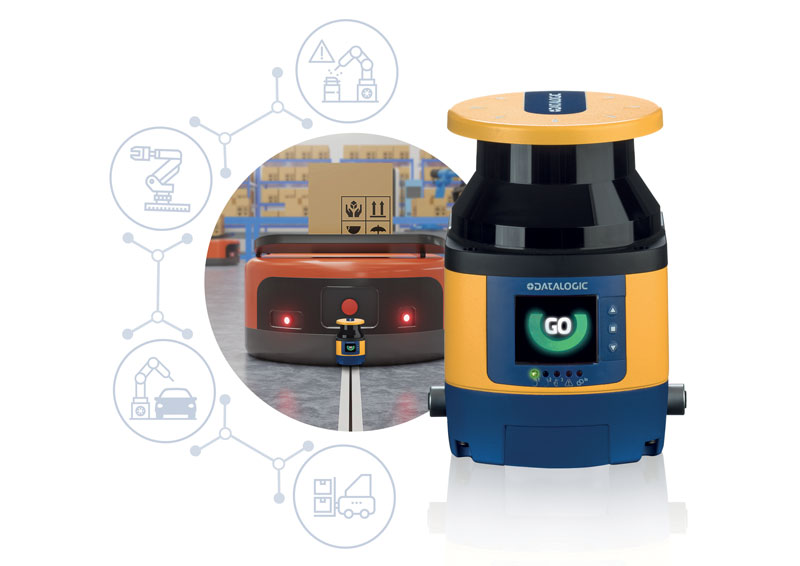

The Laser Sentinel Enhanced from Datalogic is the one solution for both the safety of machinery and automated vehicles. The different models available offer innovative features, such as two safety zones up to 5.5 m distance for 275°, and two warning zones that cover up to 40 m simultaneously. To make installation and configuration user friendly and fast up to 4 scanners can be connected in a single system with one connection point only for inputs and outputs and a single point for configuration.
Depending on the application the detection capability can be flexibly configured to 30, 40, 50, 70 or 150 mm. Equipped with a unique partial dynamic muting, the Sentinel ensures the passage of different material sizes and at the same time safeguards the safety of human beings by stopping the machine if people try to pass-through.
Developed to support AGV applications the Sentinel can save 70 different configurations and activate them in function of the position and the speed of the vehicle. Measurement is done by means of the encoder inputs.
To save energy, the scanner is equipped with a shut-off function that can be activated once the vehicle is stopped. The transmission of data can be changed dynamically in order to respond to different requests from the controller. Finally, maintenance is fast and easy.
